Product Specification
| Product Name | H2O2 Transfer Needle |
|---|
| Application | Low Temperature Sterilization |
| Includes | O-rings |
| Fits | Injector Valve Assembly |
| Materials | Stainless steel 303, 304 |
| Hardness | Temper- Full Hard |
| Tolerance | +/-0.01mm |
| Manufacturing | Sliding Headstock Lathe, Swaging, Laser Welding |
| Certification | ISO 9001:2015, ISO 13485 |
| Facilities | Citizen Cincom R04, Two-die Rotary Swaging Machine |
| Packing | PP bag or tailor-made packing on request |
Product details

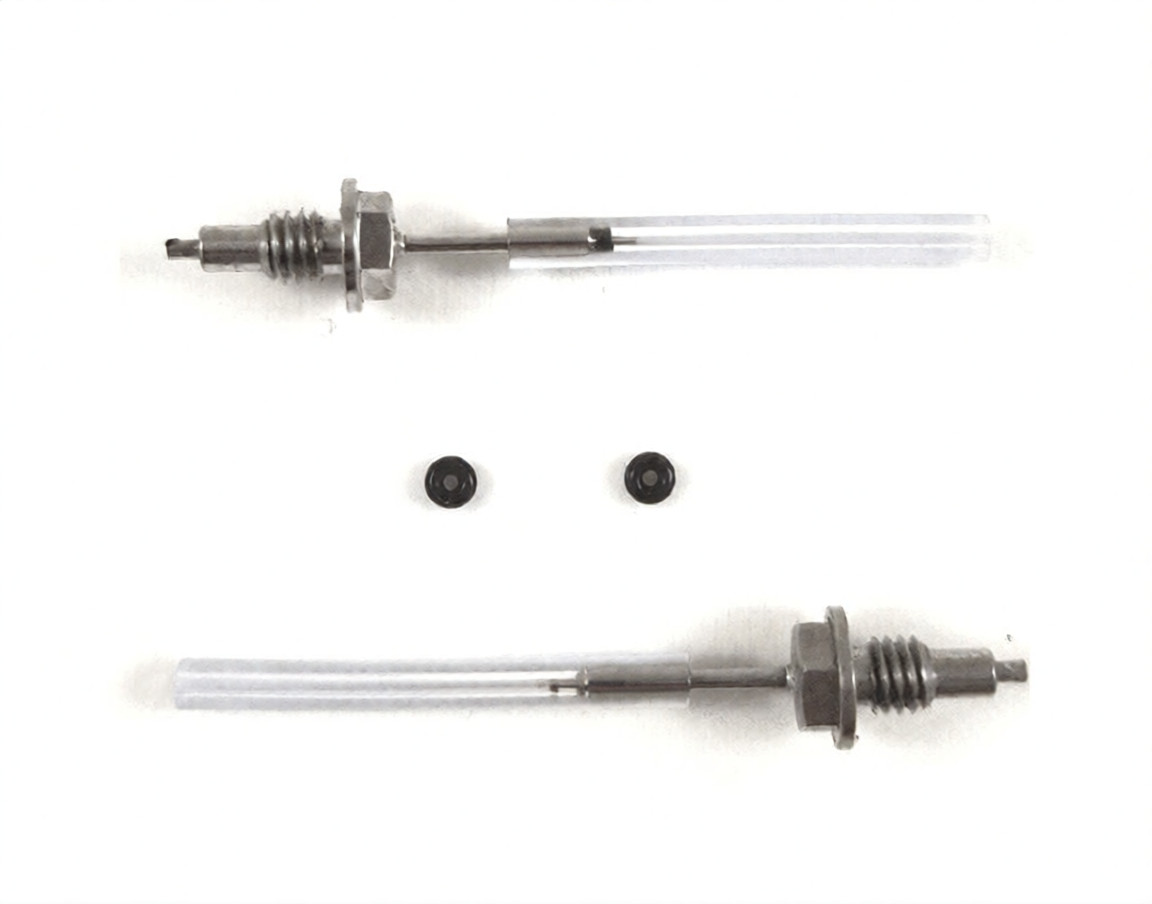

The H2O2 Transfer Needle is a meticulously designed instrument comprising two key components: a precision-engineered base and a sharp, durable needle. The base is constructed from stainless steel 303, celebrated for its excellent machinability and corrosion resistance, which ensures a robust and reliable connection. Complementing this, the needle tip is crafted from stainless steel 304, tempered to full hardness. This provides superior strength, durability, and resistance to wear and tear. The combination of these materials guarantees a high-performance needle suited for demanding applications.
To further enhance functionality, our needles feature special swagged bevels that minimize coring from rubber stoppers, facilitating easy penetration and reliable H2O2 transfer. The hexagonal hub design ensures a secure fit, preventing accidental dislodging during use. This makes it ideal for applications in medical facilities, laboratories, and industrial settings where precise and controlled delivery of H2O2 is critical.
Manners Technology’s transfer needles are versatile, being compatible with various H2O2 concentrations and available in multiple sizes to accommodate different container types and volumes. The needle's smooth, polished surface ensures fast and clean flow, significantly reducing the risk of spills and contamination. Our commitment to quality is evidenced by our compliance with the high standards of industry-leading companies such as STERIS Corporation, Getinge Group, 3M Health Care, and Belimed, ensuring reliability and safety.
Each H2O2 Transfer Needle is certified to be RoHS compliant as defined under European Union Directive 2002/95/EC. This certification guarantees that our products are free from hazardous substances, aligning with global standards for environmental and user safety.
Our advanced manufacturing processes, including tube swaging and Sliding Headstock Lathe machining, guarantee precision and quality. Manners Technology employs two-die rotary swaging machines that utilize reciprocating radial motion to form the ends of materials placed in the machine, capable of pointing, downsizing, and forming metal wires, rods, and tubes.
The Sliding Headstock Lathe, specifically the Citizen Cincom R04VI, is renowned for its high-speed and high-precision machining capabilities. With an accuracy of 0.01mm and a maximum machining diameter of 4mm, the Citizen Cincom R04 was developed specifically for crafting tiny precision parts.
To ensure user safety and product quality, each needle undergoes rigorous inspection and electropolishing in accordance with ASTM B912 standards. This process removes a microscopically precise layer of surface material, controlling removal as close as +/-.0001″, depending on the alloy. This enhances corrosion resistance and eliminates surface defects like burrs and microcracks. Our dedication to quality and customer satisfaction is reflected in our partnerships with renowned companies and our competitive pricing strategy.
